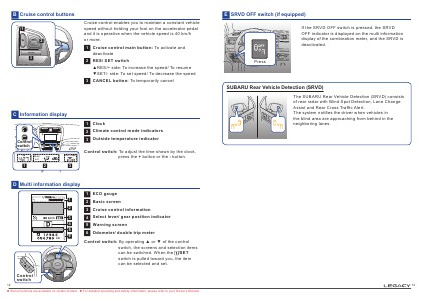

B Cruise control buttons
Cruise control enables you to maintain a constant vehicle
speed without holding your foot on the accelerator pedal
and it is operative when the vehicle speed is 40 km/h
or more.
1
2
1 Cruise control main button: To activate and
deactivate
3
2 RES/ SET switch
▲RES/+ side: To increase the speed/ To resume
▼SET/- side: To set speed/ To decrease the speed
3 CANCEL button: To temporarily cancel
C Information display
1 Clock
2 Climate control mode indicators
3 Outside temperature indicator
Control
switch
PM
1
OUT TEMP
MAX
A/C
2
Control switch: To adjust the time shown by the clock,
press the + button or the - button.
3
D Multi information display
1
1 ECO gauge
2 Basic screen
2
3
km
4 Select lever/ gear position indicator
4
5
km/h
3 Cruise control information
5 Warning screen
6
6 Odometer/ double trip meter
Control switch: By operating ▲ or ▼ of the control
switch, the screens and selection items
can be switched. When the /SET
switch is pulled toward you, the item
can be selected and set.
Control
switch
12
◆ Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
