1-48
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
12)
13)
14)
15)
16)
17)

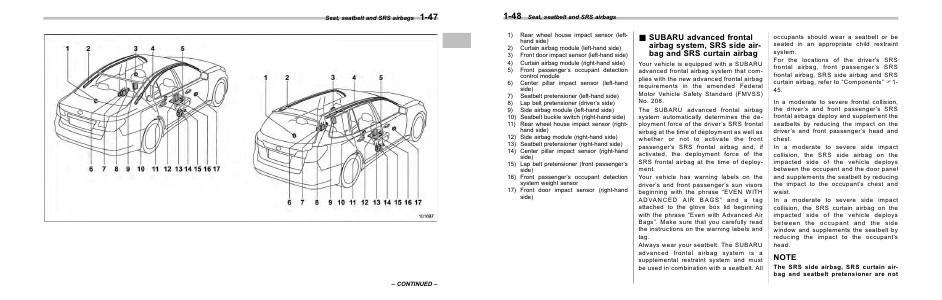

Seat, seatbelt and SRS airbags
Rear wheel house impact sensor (lefthand side)
Curtain airbag module (left-hand side)
Front door impact sensor (left-hand side)
Curtain airbag module (right-hand side)
Front passenger’s occupant detection
control module
Center pillar impact sensor (left-hand
side)
Seatbelt pretensioner (left-hand side)
Lap belt pretensioner (driver’s side)
Side airbag module (left-hand side)
Seatbelt buckle switch (right-hand side)
Rear wheel house impact sensor (righthand side)
Side airbag module (right-hand side)
Seatbelt pretensioner (right-hand side)
Center pillar impact sensor (right-hand
side)
Lap belt pretensioner (front passenger’s
side)
Front passenger’s occupant detection
system weight sensor
Front door impact sensor (right-hand
side)
& SUBARU advanced frontal
airbag system, SRS side airbag and SRS curtain airbag
Your vehicle is equipped with a SUBARU
advanced frontal airbag system that complies with the new advanced frontal airbag
requirements in the amended Federal
Motor Vehicle Safety Standard (FMVSS)
No. 208.
The SUBARU advanced frontal airbag
system automatically determines the deployment force of the driver’s SRS frontal
airbag at the time of deployment as well as
whether or not to activate the front
passenger’s SRS frontal airbag and, if
activated, the deployment force of the
SRS frontal airbag at the time of deployment.
Your vehicle has warning labels on the
driver’s and front passenger’s sun visors
beginning with the phrase “EVEN WITH
ADVANCED AIR BAGS” and a tag
attached to the glove box lid beginning
with the phrase “Even with Advanced Air
Bags”. Make sure that you carefully read
the instructions on the warning labels and
tag.
Always wear your seatbelt. The SUBARU
advanced frontal airbag system is a
sup
