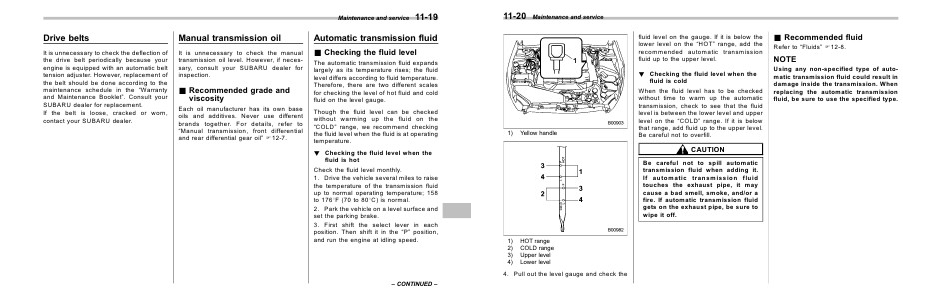

11-20
Maintenance and service
fluid level on the gauge. If it is below the
lower level on the “HOT” range, add the
recommended automatic transmission
fluid up to the upper level.
1)
Yellow handle
! Checking the fluid level when the
fluid is cold
When the fluid level has to be checked
without time to warm up the automatic
transmission, check to see that the fluid
level is between the lower level and upper
level on the “COLD” range. If it is below
that range, add fluid up to the upper level.
Be careful not to overfill.
CAUTION
Be careful not to spill automatic
transmission fluid when adding it.
If automatic transmission fluid
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or a
fire. If automatic transmission fluid
gets on the exhaust pipe, be sure to
wipe it off.
1)
2)
3)
4)
HOT range
COLD range
Upper level
Lower level
4. Pull out the level gauge and check the
& Recommended fluid
Refer to “Fluids” F12-8.
NOTE
Using any non-specified type of automatic transmission fluid could result in
damage inside the transmission. When
replacing the automatic transmission
fluid, be sure to use the specified type.
