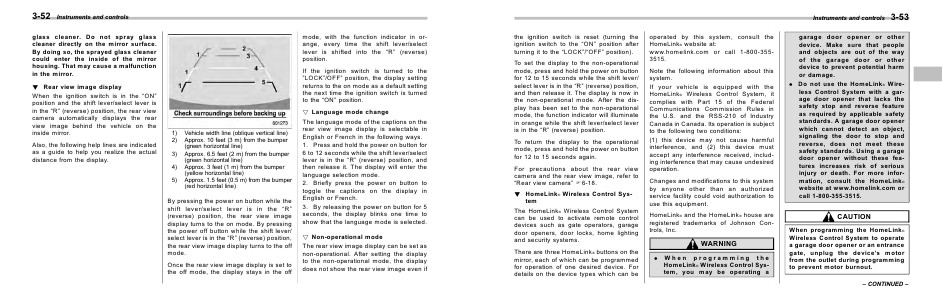

3-52
Instruments and controls
mode, with the function indicator in orange, every time the shift lever/select
lever is shifted into the “R” (reverse)
position.
glass cleaner. Do not spray glass
cleaner directly on the mirror surface.
By doing so, the sprayed glass cleaner
could enter the inside of the mirror
housing. That may cause a malfunction
in the mirror.
! Rear view image display
When the ignition switch is in the “ON”
position and the shift lever/select lever is
in the “R” (reverse) position, the rear view
camera automatically displays the rear
view image behind the vehicle on the
inside mirror.
Also, the following help lines are indicated
as a guide to help you realize the actual
distance from the display.
If the ignition switch is turned to the
”LOCK”/OFF” position, the display setting
returns to the on mode as a default setting
the next time the ignition switch is turned
to the “ON” position.
1)
2)
3)
4)
5)
Vehicle width line (oblique vertical line)
Approx. 10 feet (3 m) from the bumper
(green horizontal line)
Approx. 6.5 feet (2 m) from the bumper
