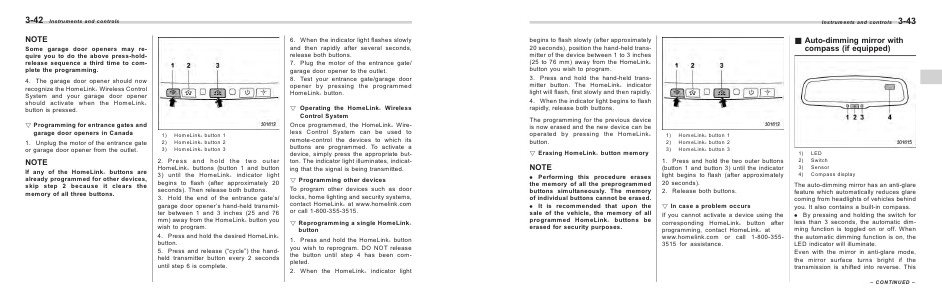

Instruments and controls
& Auto-dimming mirror with
compass (if equipped)
begins to flash slowly (after approximately
20 seconds), position the hand-held transmitter of the device between 1 to 3 inches
(25 to 76 mm) away from the HomeLink®
button you wish to program.
3. Press and hold the hand-held transmitter button. The HomeLink® indicator
light will flash, first slowly and then rapidly.
4. When the indicator light begins to flash
rapidly, release both buttons.
The programming for the previous device
is now erased and the new device can be
operated by pressing the HomeLink®
button.
! Erasing HomeLink® button memory
NOTE
. Performing this procedure erases
the memory of all the preprogrammed
buttons simultaneously. The memory
of individual buttons cannot be erased.
. It is recommended that upon the
sale of the vehicle, the memory of all
programmed HomeLink® buttons be
erased for security purposes.
3-43
1)
2)
3)
HomeLink® button 1
HomeLink® button 2
HomeLink® button 3
1. Press and hold the two outer buttons
(button 1 and button 3) until the indicator
light begins to flash (after approximately
20 seconds).
2. Release both buttons.
! In case a problem occurs
If you cannot activate a device using the
corresponding HomeLink® button after
programming, contact HomeLink® at
www.homelink.com or call 1-800-3553515 for assistance.
1)
2)
3)
4)
LED
Switch
Sensor
Compass display
The auto-dimming mirror has an anti-glare
feature which automatically reduces glare
coming from headlights of vehicles behind
you. It also contains a built-in compass.
. By pressing and holding the switch for
less than 3 seconds, the automatic dimming function is toggled on or off. When
the automatic dimming function is on, the
LED indicator will illuminate.
Even with the mirror in anti-glare mode,
the mirror surface turns bright if the
transmission is shifted into reverse. This
– CONTINUED –
