12-8

Specifications

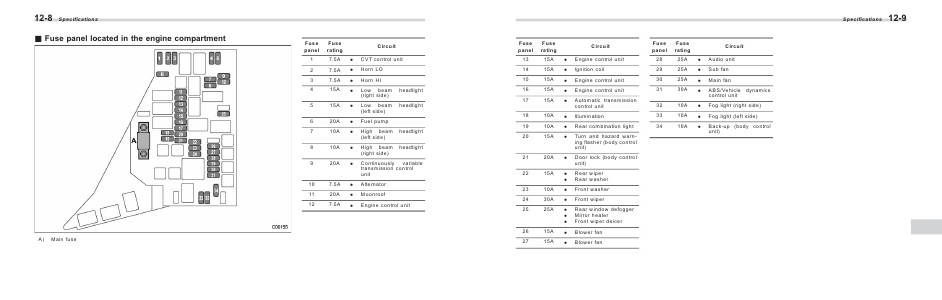

& Fuse panel located in the engine compartment

7.5A

.

CVT control unit

2

7.5A

.

Horn LO

3

7.5A

.

Horn HI

4

15A

.

Low beam
(right side)

headlight

5

15A

.

Low beam
(left side)

headlight

6

20A

.

Fuel pump

7

10A

.

High beam headlight
(left side)

8

10A

.

High beam headlight
(right side)

9

20A

.

Continuously variable
transmission control
unit

10

7.5A

.

Alternator

11

20A

.

Moonroof

12

Main fuse

Fuse
rating

1

A)

Fuse
panel

7.5A

.

Engine control unit

Circuit
