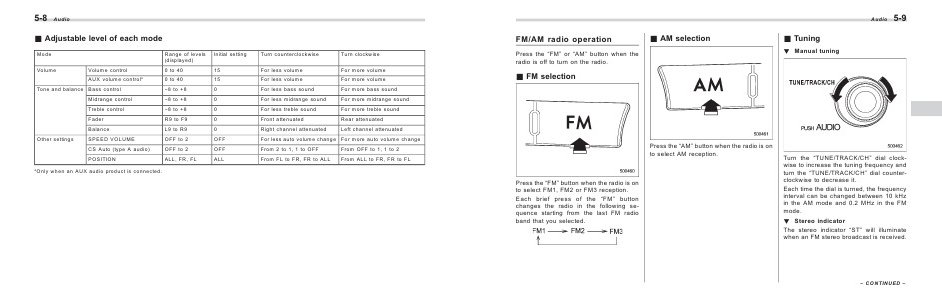

Audio
FM/AM radio operation
& AM selection
5-9
& Tuning
! Manual tuning
Press the “FM” or “AM” button when the
radio is off to turn on the radio.
& FM selection
Press the “AM” button when the radio is on
to select AM reception.
Press the “FM” button when the radio is on
to select FM1, FM2 or FM3 reception.
Each brief press of the “FM” button
changes the radio in the following sequence starting from the last FM radio
band that you selected.
Turn the “TUNE/TRACK/CH” dial clockwise to increase the tuning frequency and
turn the “TUNE/TRACK/CH” dial counterclockwise to decrease it.
Each time the dial is turned, the frequency
interval can be changed between 10 kHz
in the AM mode and 0.2 MHz in the FM
mode.
! Stereo indicator
The stereo indicator “ST” will illuminate
when an FM stereo broadcast is received.
– CONTINUED –
