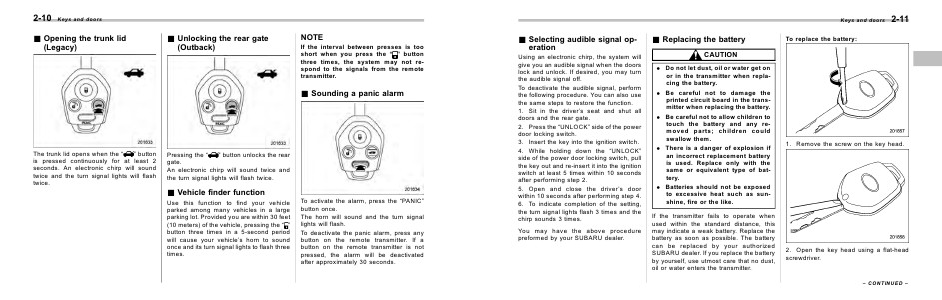

Keys and doors
& Selecting audible signal operation
Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off.
To deactivate the audible signal, perform
the following procedure. You can also use
the same steps to restore the function.
1. Sit in the driver’s seat and shut all
doors and the rear gate.
2. Press the “UNLOCK” side of the power
door locking switch.
3. Insert the key into the ignition switch.
4. While holding down the “UNLOCK”
side of the power door locking switch, pull
the key out and re-insert it into the ignition
switch at least 5 times within 10 seconds
after performing step 2.
5. Open and close the driver’s door
within 10 seconds after performing step 4.
6. To indicate completion of the setting,
the turn signal lights flash 3 times and the
chirp sounds 3 times.
You may have the above procedure
preformed by your SUBARU dealer.
& Replacing the battery
2-11
To replace the battery:
CAUTION
. Do not let dust, oil or water get on
or in the transmitter when replacing the battery.
. Be careful not to damage the
printed circuit board in the transmitter when replacing the battery.
. Be careful not to allow chil dren to
touch the battery and any removed parts; children could
swallow them.
. There is a danger of explosion if
an incorrect replacement battery
is used. Replace only with the
same or equivalent type of battery.
. Batteries should not be exposed
to excessive heat such as sunshine, fire or the like.
If the transmitter fails to operate when
used within the standard distance, this
may indicate a weak battery. Replace the
battery as soon as possible. The battery
can be replaced by your authorized
SUBARU dealer. If you replace the battery
by yourself, use utmost care that no dust,
oil or water enters the transmitter.
1. Remove the screw on the key head.
2. Open the key head using a flat-head
screwdriver.
– CONTINUED –
