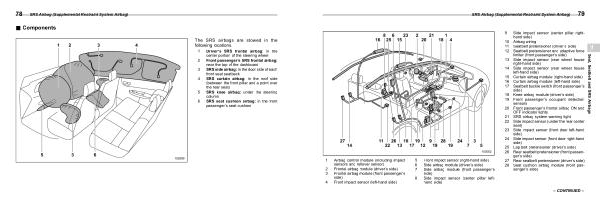

1 Airbag control module( including impact sensors and rollover sensor)
2 Frontal airbag module( driver’ s side)
3 Frontal airbag module( front passenger’ s side)
4 Front impact sensor( left-hand side)
|
5 Front impact sensor( right-hand side) 6 Side airbag module( driver’ s side) 7 Side airbag module( front passenger’ s side)
8 Side impact sensor( center pillar lefthand side)
|
9 Side impact sensor( center pillar righthand side)
10 Airbag wiring 11 Seatbelt pretensioner( driver’ s side)
12 Seatbelt pretensioner and adaptive force limiter( front passenger’ s side)
13 Side impact sensor( rear wheel house right-hand side)
14 Side impact sensor( rear wheel house left-hand side)
15 Curtain airbag module( right-hand side) 16 Curtain airbag module( left-hand side)
17 Seatbelt buckle switch( front passenger’ s side)
18 Knee airbag module( driver’ s side) 19 Front passenger’ s occupant detection sensors
20 Front passenger’ s frontal airbag ON and OFF indicator lights
21 SRS airbag system warning light 22 Side impact sensor( under the rear center seat)
23 Side impact sensor( front door left-hand side)
24 Side impact sensor( front door right-hand side)
25 Lap belt pretensioner( driver’ s side) 26 Rear seatbelt pretensioner( front passenger’ s side)
27 Rear seatbelt pretensioner( driver’ s side) 28 Seat cushion airbag module( front passenger’ s side)
|
