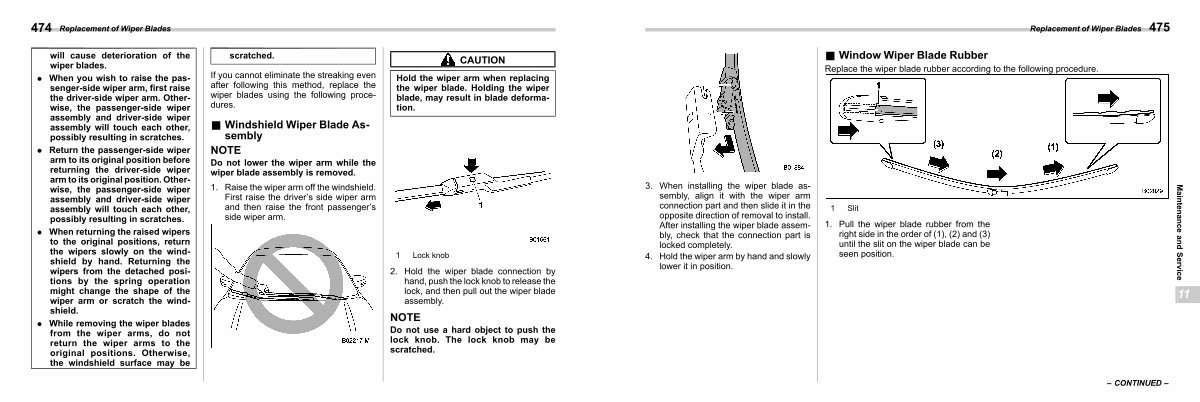

Replacement of Wiper Blades 475
& Window Wiper Blade Rubber s11az05
Replace the wiper blade rubber according to the following procedure.
3. When installing the wiper blade assembly, align it with the wiper arm connection part and then slide it in the opposite direction of removal to install. After installing the wiper blade assembly, check that the connection part is locked completely.
4. Hold the wiper arm by hand and slowly lower it in position.
1 Slit
1. Pull the wiper blade rubber from the right side in the order of( 1),( 2) and( 3) until the slit on the wiper blade can be seen position.
Maintenance and Service
11
– CONTINUED –
