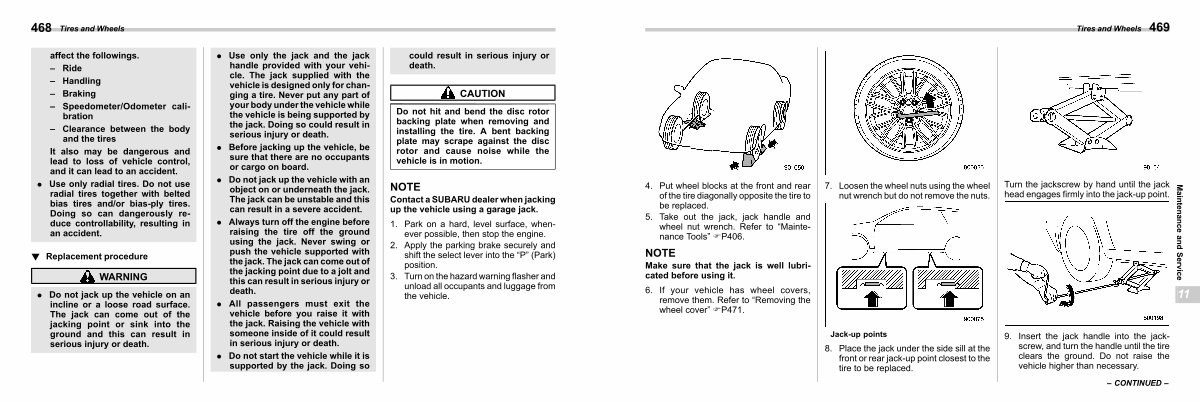

Tires and Wheels 469 |
||||||||
|
4. Put wheel blocks at the front and rear of the tire diagonally opposite the tire to be replaced.
5. Take out the jack, jack handle and wheel nut wrench. Refer to“ Maintenance Tools” FP406.
NOTE
Make sure that the jack is well lubricated before using it.
6. If your vehicle has wheel covers, remove them. Refer to“ Removing the wheel cover” FP471.
|
7. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts. |
Turn the jackscrew by hand until the jack head engages firmly into the jack-up point. |
Maintenance and Service |
|||||
11 |
||||||||
|
Jack-up points
8. Place the jack under the side sill at the front or rear jack-up point closest to the tire to be replaced.
|
9. Insert the jack handle into the jackscrew, and turn the handle until the tire clears the ground. Do not raise the vehicle higher than necessary. |
|||||||
– CONTINUED – |
