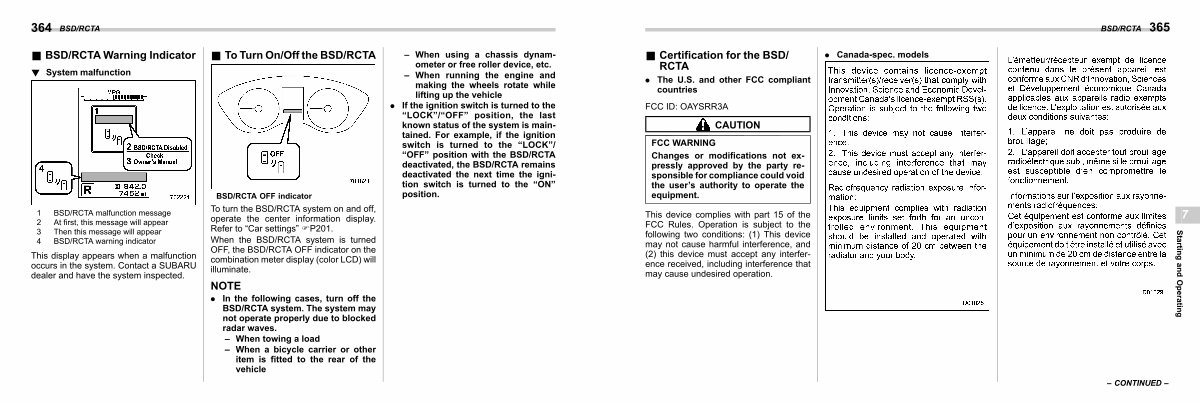

364
BSD / RCTA
& BSD / RCTA Warning Indicator s07bm04
! System malfunction s07bm0403
1 BSD / RCTA malfunction message 2 At first, this message will appear 3 Then this message will appear 4 BSD / RCTA warning indicator
This display appears when a malfunction occurs in the system. Contact a SUBARU dealer and have the system inspected.
& To Turn On / Off the BSD / RCTA s07bm09
BSD / RCTA OFF indicator
To turn the BSD / RCTA system on and off, operate the center information display. Refer to“ Car settings” FP201.
When the BSD / RCTA system is turned OFF, the BSD / RCTA OFF indicator on the combination meter display( color LCD) will illuminate.
NOTE
. In the following cases, turn off the BSD / RCTA system. The system may not operate properly due to blocked radar waves. – When towing a load – When a bicycle carrier or other item is fitted to the rear of the vehicle
– When using a chassis dynamometer or free roller device, etc.
– When running the engine and making the wheels rotate while lifting up the vehicle
. If the ignition switch is turned to the“ LOCK”/“ OFF” position, the last known status of the system is maintained. For example, if the ignition switch is turned to the“ LOCK”/“ OFF” position with the BSD / RCTA deactivated, the BSD / RCTA remains deactivated the next time the ignition switch is turned to the“ ON” position.
