356

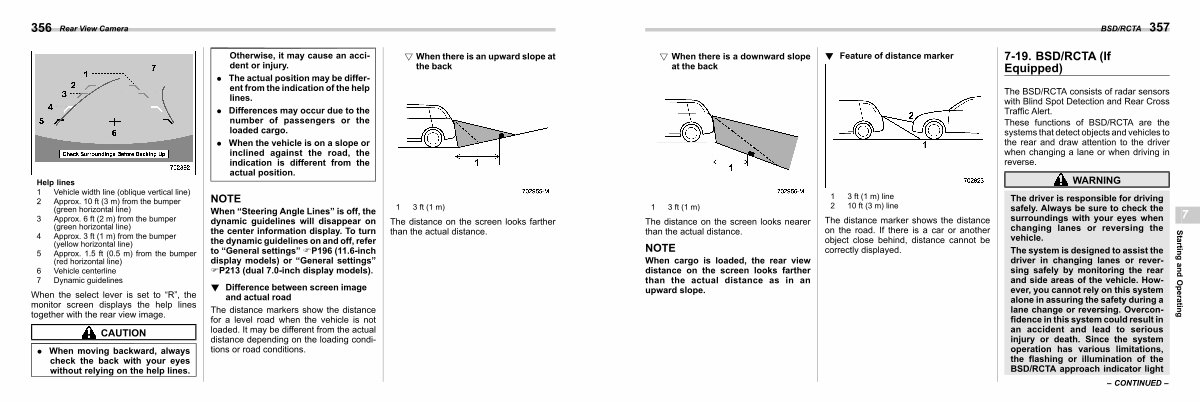

Rear View Camera
Help lines 1 Vehicle width line( oblique vertical line)
2 Approx. 10 ft( 3 m) from the bumper( green horizontal line)
3 Approx. 6 ft( 2 m) from the bumper( green horizontal line)
4 Approx. 3 ft( 1 m) from the bumper( yellow horizontal line)
5 Approx. 1.5 ft( 0.5 m) from the bumper( red horizontal line)
6 Vehicle centerline 7 Dynamic guidelines
When the select lever is set to“ R”, the monitor screen displays the help lines together with the rear view image.
CAUTION
. When moving backward, always check the back with your eyes without relying on the help lines.
Otherwise, it may cause an accident or injury.
. The actual position may be different from the indication of the help lines.
. Differences may occur due to the number of passengers or the loaded cargo.
. When the vehicle is on a slope or inclined against the road, the indication is different from the actual position.
NOTE
When“ Steering Angle Lines” is off, the dynamic guidelines will disappear on the center information display. To turn the dynamic guidelines on and off, refer to“ General settings” FP196( 11.6-inch display models) or“ General settings” FP213( dual 7.0-inch display models).
! Difference between screen image and actual road s07br0301
The distance markers show the distance for a level road when the vehicle is not loaded. It may be different from the actual distance depending on the loading conditions or road conditions.
! When there is an upward slope at the back s07br030101
1 3 ft( 1 m)
The distance on the screen looks farther than the actual distance.
