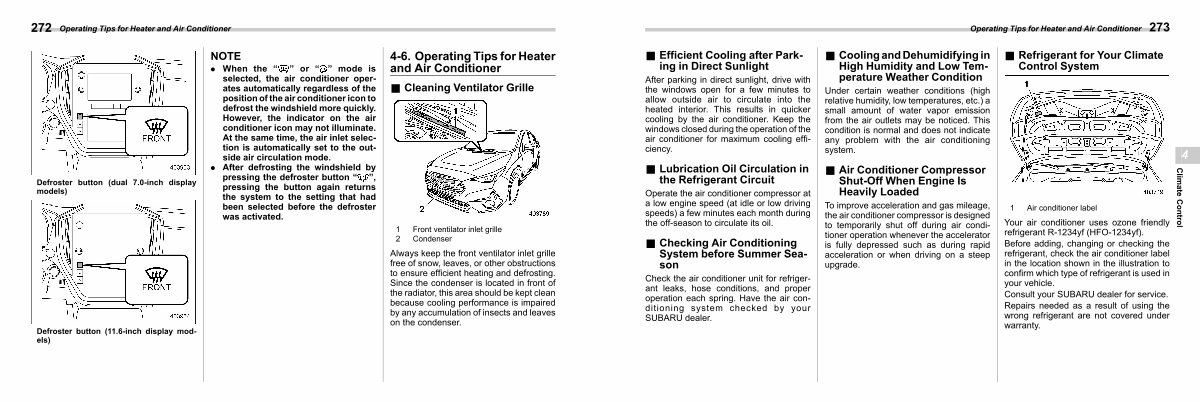

272
Operating Tips for Heater and Air Conditioner
Defroster button( dual 7.0-inch display models)
Defroster button( 11.6-inch display models)
NOTE
. When the“” or“” mode is selected, the air conditioner operates automatically regardless of the position of the air conditioner icon to defrost the windshield more quickly. However, the indicator on the air conditioner icon may not illuminate. At the same time, the air inlet selection is automatically set to the outside air circulation mode.
. After defrosting the windshield by pressing the defroster button“”, pressing the button again returns the system to the setting that had been selected before the defroster was activated.
4-6. Operating Tips for Heater and Air Conditioner
s04ad
& Cleaning Ventilator Grille s04ad01
1 Front ventilator inlet grille 2 Condenser
Always keep the front ventilator inlet grille free of snow, leaves, or other obstructions to ensure efficient heating and defrosting. Since the condenser is located in front of the radiator, this area should be kept clean because cooling performance is impaired by any accumulation of insects and leaves on the condenser.
