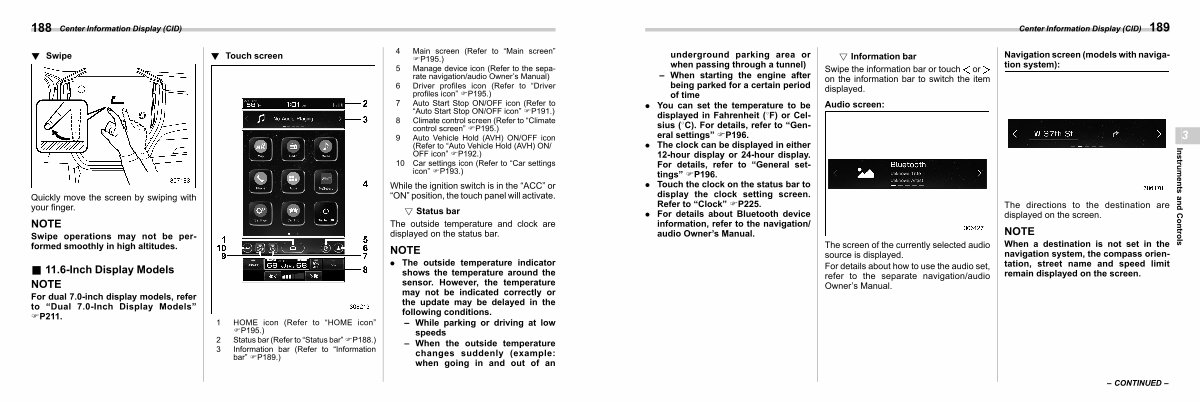

Center Information Display( CID)
! Swipe s03bs0403
Quickly move the screen by swiping with your finger.
NOTE
Swipe operations may not be performed smoothly in high altitudes.
& 11.6-Inch Display Models s03bs05
NOTE
For dual 7.0-inch display models, refer to“ Dual 7.0-Inch Display Models” FP211.
! Touch screen s03bs0501
1 HOME icon( Refer to“ HOME icon” FP195.)
2 Status bar( Refer to“ Status bar” FP188.)
3 Information bar( Refer to“ Information bar” FP189.)
4 Main screen( Refer to“ Main screen” FP195.)
5 Manage device icon( Refer to the separate navigation / audio Owner’ s Manual)
6 Driver profiles icon( Refer to“ Driver profiles icon” FP195.)
7 Auto Start Stop ON / OFF icon( Refer to“ Auto Start Stop ON / OFF icon” FP191.)
8 Climate control screen( Refer to“ Climate control screen” FP195.)
9 Auto Vehicle Hold( AVH) ON / OFF icon( Refer to“ Auto Vehicle Hold( AVH) ON / OFF icon” FP192.)
10 Car settings icon( Refer to“ Car settings icon” FP193.)
While the ignition switch is in the“ ACC” or“ ON” position, the touch panel will activate.
! Status bar s03bs050101
The outside temperature and clock are displayed on the status bar.
NOTE
. The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions. – While parking or driving at low speeds
– When the outside temperature changes suddenly( example: when going in and out of an
