350
Rear View Camera
Activity Detected indicator light will illuminate . It will turn off when the vehicle begins to drive .
& Displaying the Auto Start Stop System Status s07bh02
Approximate indications of the time that the engine has been stopped by the Auto Start Stop system and / or the amount of fuel saved can be displayed on the combination meter display ( color LCD ). For details , refer to “ Basic Screens ” FP180 .
& System Warning s07bh03
So that it can be used safely and comfortably , the Auto Start Stop system is designed to constantly monitor the vehicle conditions as well as the environment inside and outside the vehicle in addition to driver operations , and to provide various warnings to the driver via the warning light and / or indicator light illuminating and a buzzer sounding . For details about the warning light and indicator light , refer to “ Auto Start Stop Warning Light ( Yellow )” FP173 .
! Warning buzzer s07bh0301
The buzzer will sound when the engine hood is opened while the engine is stopped by the Auto Start Stop system .
When this occurs , the buzzer will stop sounding when the following operations are performed .
. The engine is restarted by normal operation . ( Refer to “ Preparing to Drive ” FP309 .)
. The ignition switch is turned to the “ OFF ” position .
! Display of warning messages s07bh0302
If a warning message is displayed on the combination meter display ( color LCD ) while driving , a malfunction may have occurred in the Auto Start Stop system . In this case , the Auto Start Stop warning light will illuminate . Have your vehicle inspected at a SUBARU dealer as soon as possible .

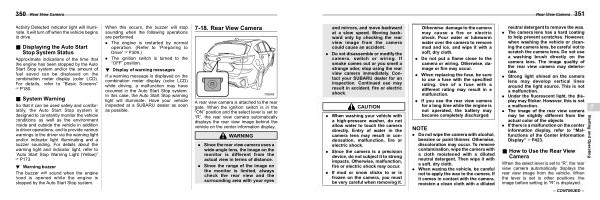

7-18 . Rear View Camera s07br
A rear view camera is attached to the rear gate . When the ignition switch is in the “ ON ” position and the select lever is set to “ R ”, the rear view camera automatically displays the rear view image behind the vehicle on the center information display .
WARNING
. Since the rear view camera uses a wide-angle lens , the image on the monitor is different from the actual view in terms of distance .
. Since the range of the image on the monitor is limited , always check the rear view and the surrounding area with your eyes
