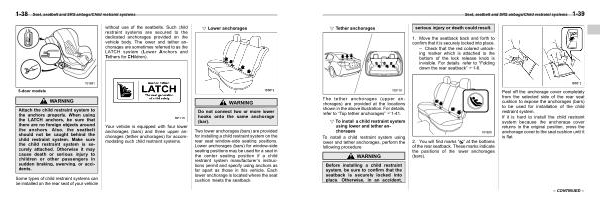

Seat , seatbelt and SRS airbags / Child restraint systems 1-39
! Tether anchorages
S01AG070102
serious injury or death could result .
1 . Move the seatback back and forth to confirm that it is securely locked into place . – Check that the red colored unlocking marker which is attached to the bottom of the lock release knob is invisible . For details , refer to “ Folding down the rear seatback ” F1-6 .
The tether anchorages ( upper anchorages ) are provided at the locations shown in the above illustration . For details , refer to “ Top tether anchorages ” F1-41 .
! To install a child restraint system using lower and tether anchorages
S01AG070103
To install a child restraint system using lower and tether anchorages , perform the following procedure .
WARNING
Before installing a child restraint system , be sure to confirm that the seatback is securely locked into place . Otherwise , in an accident ,
2 . You will find marks “ ” at the bottoms of the rear seatback . These marks indicate the positions of the lower anchorages ( bars ).
Peel off the anchorage cover completely from the selected side of the rear seat cushion to expose the anchorages ( bars ) to be used for installation of the child restraint system .
If it is hard to install the child restraint system because the anchorage cover returns to the original position , press the anchorage cover to the seat cushion until it is flat .
– CONTINUED –
