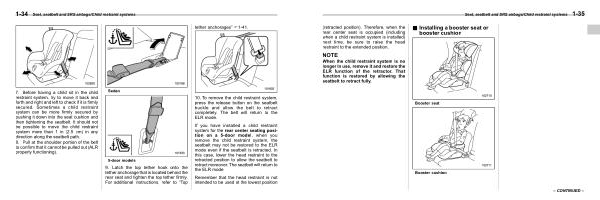

1-34
Seat , seatbelt and SRS airbags / Child restraint systems
tether anchorages ” F1-41 .
7 . Before having a child sit in the child restraint system , try to move it back and forth and right and left to check if it is firmly secured . Sometimes a child restraint system can be more firmly secured by pushing it down into the seat cushion and then tightening the seatbelt . It should not be possible to move the child restraint system more than 1 in ( 2.5 cm ) in any direction along the seatbelt path .
8 . Pull at the shoulder portion of the belt to confirm that it cannot be pulled out ( ALR properly functioning ).
Sedan
5-door models
9 . Latch the top tether hook onto the tether anchorage that is located behind the rear seat and tighten the top tether firmly . For additional instructions , refer to “ Top
10 . To remove the child restraint system , press the release button on the seatbelt buckle and allow the belt to retract completely . The belt will return to the ELR mode .
If you have installed a child restraint system for the rear center seating position on a 5-door model , when you remove the child restraint system , the seatbelt may not be restored to the ELR mode even if the seatbelt is retracted . In this case , lower the head restraint to the retracted position to allow the seatbelt to retract moreover . The seatbelt will return to the ELR mode .
Remember that the head restraint is not intended to be used at the lowest position
