Seat , seatbelt and SRS airbags / Seatbelt pretensioners 1-23

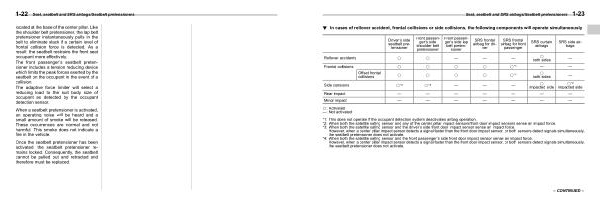

! In cases of rollover accident , frontal collisions or side collisions , the following components will operate simultaneously
S01AF0901
Driver ’ s side seatbelt pretensioner
Front passenger ’ s side shoulder belt pretensioner
Front passenger ’ s side lap belt pretensioner
SRS frontal airbag for driver
SRS frontal airbag for front passenger
SRS curtain airbags
SRS side airbags
Rollover accidents |
* |
* |
— |
— |
— |
* both sides |
— |
Frontal collisions |
* |
* |
* |
* |
* * 1
|
— |
— |
Offset frontal collisions
* |
* |
* |
* |
* * 1
|
* both sides |
|
|
|
|
|
* |
|
|
|
|
|
impacted side |
Side collisions * * 3 * * 4 — — —
—
* * 2 impacted side
Rear impact |
— |
— |
— |
— |
— |
— |
— |
Minor impact |
— |
— |
— |
— |
— |
— |
— |
*: Activated —: Not activated
* 1 : This does not operate if the occupant detection system deactivates airbag operation . * 2 : When both the satellite safing sensor and any of the center pillar impact sensors / front door impact sensors sense an impact force . * 3 : When both the satellite safing sensor and the driver ’ s side front door impact sensor sense an impact force . However , when a center pillar impact sensor detects a signal faster than the front door impact sensor , or both sensors detect signals simultaneously , the seatbelt pretensioner does not activate .
* 4 : When both the satellite safing sensor and the front passenger ’ s side front door impact sensor sense an impact force . However , when a center pillar impact sensor detects a signal faster than the front door impact sensor , or both sensors detect signals simultaneously , the seatbelt pretensioner does not activate .
– CONTINUED –
