11-46 Maintenance and service / Replacing bulbs
|
& Other bulbs
S11BE29
It may be difficult to replace the bulbs . Have the bulbs replaced by your SUBARU dealer if necessary .
|
! Headlight aim adjustment |
S11BE5702 |
2 . Turn screw A clockwise or counterclockwise to adjust it .
Remember the direction of the rotation and number of rotations .
|
|

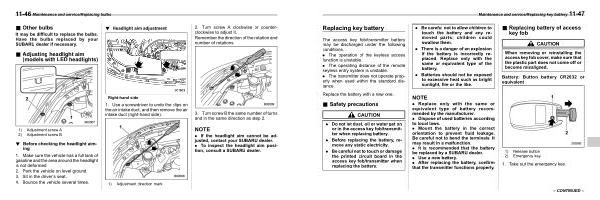

& Adjusting headlight aim ( models with LED headlights )
S11BE57
|
|
|
|
1 ) |
Adjustment screw A |
2 ) |
Adjustment screw B |
! Before checking the headlight aiming
S11BE5701
1 . Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed .
2 . Park the vehicle on level ground . 3 . Sit in the driver ’ s seat . 4 . Bounce the vehicle several times .
Right-hand side
1 . Use a screwdriver to undo the clips on the air intake duct , and then remove the air intake duct ( right-hand side ).
1 ) Adjustment direction mark
3 . Turn screw B the same number of turns and in the same direction as step 2 .
NOTE
. If the headlight aim cannot be adjusted , contact your SUBARU dealer . . To inspect the headlight aim position , consult a SUBARU dealer .
