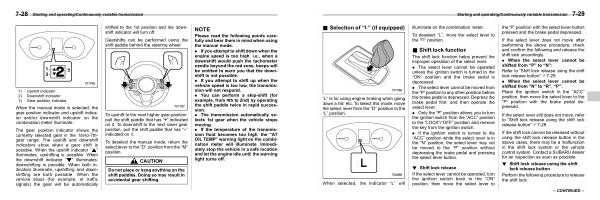

7-28
Starting and operating / Continuously variable transmission
1 ) |
Upshift indicator |
2 ) |
Downshift indicator |
3 ) |
Gear position indicator |
When the manual mode is selected , the gear position indicator and upshift indicator and / or downshift indicator on the combination meter illuminate .
The gear position indicator shows the currently selected gear in the 1st-to-7thgear range . The upshift and downshift indicators show when a gear shift is possible . When the upshift indicator “ ” illuminates , upshifting is possible . When the downshift indicator “ ” illuminates , downshifting is possible . When both indicators illuminate , upshifting and downshifting are both possible . When the vehicle stops ( for example , at traffic signals ) the gear will be automatically
shifted to the 1st position and the downshift indicator will turn off .
Gearshifts can be performed using the shift paddle behind the steering wheel .
To upshift to the next higher gear position , pull the shift paddle that has “+” indicated on it . To downshift to the next lower gear position , pull the shift paddle that has “–” indicated on it .
To deselect the manual mode , return the select lever to the “ D ” position from the “ M ” position .
CAUTION
Do not place or hang anything on the shift paddles . Doing so may result in accidental gear shifting .
NOTE
Please read the following points carefully and bear them in mind when using the manual mode .
. If you attempt to shift down when the engine speed is too high , i . e ., when a downshift would push the tachometer needle beyond the red zone , beeps will be emitted to warn you that the downshift is not possible . . If you attempt to shift up when the vehicle speed is too low , the transmission will not respond . . You can perform a skip-shift ( for example , from 4th to 2nd ) by operating the shift paddle twice in rapid succession . . The transmission automatically selects 1st gear when the vehicle stops moving . . If the temperature of the transmission fluid becomes too high , the “ AT OIL TEMP ” warning light on the combination meter will illuminate . Immediately stop the vehicle in a safe location and let the engine idle until the warning light turns off .
