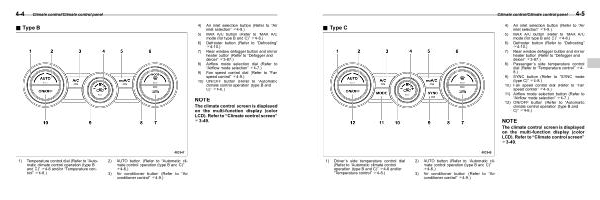

Climate control / Climate control panel 4-5
& Type C
S04AG03
4 ) Air inlet selection button ( Refer to “ Air inlet selection ” F4-9 .)
5 ) MAX A / C button ( Refer to “ MAX A / C mode ( for type B and C )” F4-8 .)
6 ) Defroster button ( Refer to “ Defrosting ” F4-10 .)
7 ) Rear window defogger button and mirror heater button ( Refer to “ Defogger and deicer ” F3-87 .)
8 ) Passenger ’ s side temperature control dial ( Refer to “ Temperature control ” F4- 8 .)
9 ) SYNC button ( Refer to “ SYNC mode ( type C )” F4-8 .)
10 ) Fan speed control dial ( Refer to “ Fan speed control ” F4-9 .)
11 ) Airflow mode selection button ( Refer to “ Airflow mode selection ” F4-7 .)
12 ) ON / OFF button ( Refer to “ Automatic climate control operation ( type B and C )” F4-6 .)
NOTE
The climate control screen is displayed on the multi-function display ( color LCD ). Refer to “ Climate control screen ” F3-49 .
1 ) Driver ’ s side temperature control dial ( Refer to “ Automatic climate control operation ( type B and C )” F4-6 and / or “ Temperature control ” F4-8 .)
2 ) AUTO button ( Refer to “ Automatic climate control operation ( type B and C )” F4-6 .)
3 ) Air conditioner button ( Refer to “ Air conditioner control ” F4-9 .)
