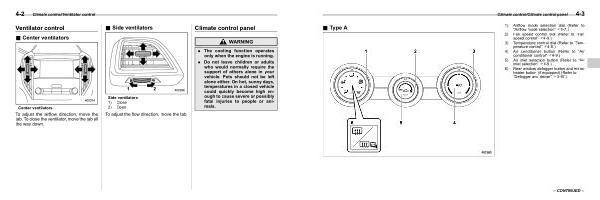

Climate control / Climate control panel 4-3
& Type A
S04AG01
1 ) Airflow mode selection dial ( Refer to “ Airflow mode selection ” F4-7 .)
2 ) Fan speed control dial ( Refer to “ Fan speed control ” F4-9 .)
3 ) Temperature control dial ( Refer to “ Temperature control ” F4-8 .)
4 ) Air conditioner button ( Refer to “ Air conditioner control ” F4-9 .)
5 ) Air inlet selection button ( Refer to “ Air inlet selection ” F4-9 .)
6 ) Rear window defogger button and mirror heater button ( if equipped ) ( Refer to “ Defogger and deicer ” F3-87 .)
– CONTINUED –
