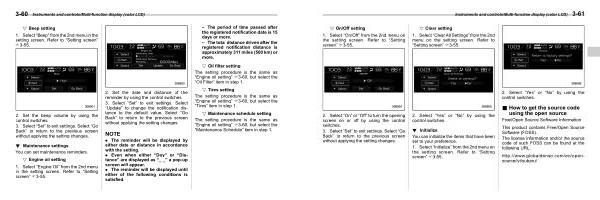

3-60
Instruments and controls / Multi-function display ( color LCD )
! Beep setting
S03BP280504
1 . Select “ Beep ” from the 2nd menu in the setting screen . Refer to “ Setting screen ” F3-55 .
2 . Set the beep volume by using the control switches .
3 . Select “ Set ” to exit settings . Select “ Go Back ” to return to the previous screen without applying the setting changes .
! Maintenance settings You can set maintenance reminders .
S03BP2803
! Engine oil setting
S03BP280301
1 . Select “ Engine Oil ” from the 2nd menu in the setting screen . Refer to “ Setting screen ” F3-55 .
2 . Set the date and distance of the reminder by using the control switches .
3 . Select “ Set ” to exit settings . Select “ Update ” to change the notification distance to the default value . Select “ Go Back ” to return to the previous screen without applying the setting changes .
NOTE
. The reminder will be displayed by either date or distance in accordance with the setting . . Even when either “ Day ” or “ Distance ” are displayed as “_ _” a pop-up screen will appear . . The reminder will be displayed until either of the following conditions is satisfied .
– The period of time passed after the registered notification date is 15 days or more . – The total distance driven after the registered notification distance is approximately 311 miles ( 500 km ) or more .
! Oil filter setting
S03BP280302
The setting procedure is the same as “ Engine oil setting ” F3-60 , but select the “ Oil Filter ” item in step 1 .
! Tires setting
S03BP280303
The setting procedure is the same as “ Engine oil setting ” F3-60 , but select the “ Tires ” item in step 1 .
! Maintenance schedule setting
S03BP280304
The setting procedure is the same as “ Engine oil setting ” F3-60 , but select the “ Maintenance Schedule ” item in step 1 .
