About EyeSight

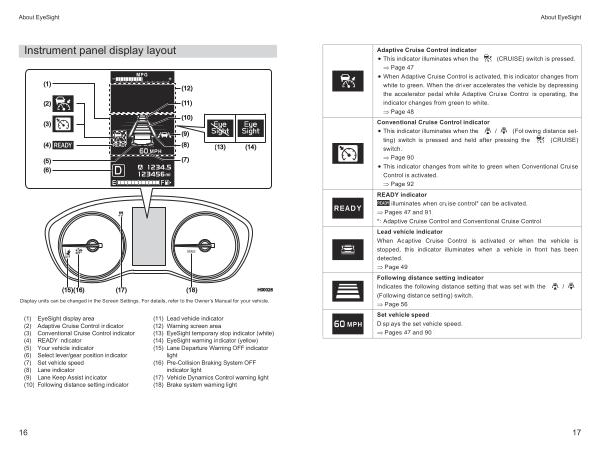

Instrument panel display layout
( 1 )
( 2 )
( 12 ) ( 11 ) ( 10 )
( 3 ) ( 9 )
( 4 ) ( 8 ) ( 13 ) ( 14 )
( 5 ) ( 6 )
( 7 )
( 15 )( 16 ) ( 17 ) ( 18 )
H00026 Display units can be changed in the Screen Settings . For details , refer to the Owner ’ s Manual for your vehicle .
( 1 ) |
EyeSight display area |
( 2 ) |
Adaptive Cruise Control indicator |
( 3 ) |
Conventional Cruise Control indicator |
( 4 ) |
READY indicator |
( 5 ) |
Your vehicle indicator |
( 6 ) |
Select lever / gear position indicator |
( 7 ) |
Set vehicle speed |
( 8 ) |
Lane indicator |
( 9 ) |
Lane Keep Assist indicator |
( 10 ) Following distance setting indicator |
( 11 ) Lead vehicle indicator ( 12 ) Warning screen area ( 13 ) EyeSight temporary stop indicator ( white ) ( 14 ) EyeSight warning indicator ( yellow ) ( 15 ) Lane Departure Warning OFF indicator light ( 16 ) Pre-Collision Braking System OFF indicator light ( 17 ) Vehicle Dynamics Control warning light ( 18 ) Brake system warning light
16
