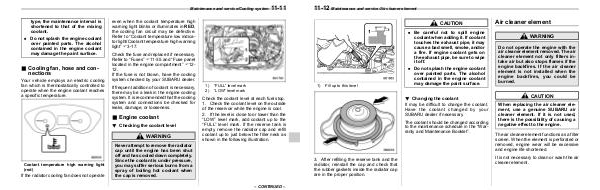

Maintenance and service/Cooling system
type, the maintenance interval is
shortened to that of the mixing
coolant.
. Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
& Cooling fan, hose and con-
nections
S11AF03
Your vehicle employs an electric cooling
fan which is thermostatically controlled to
operate when the engine coolant reaches
a specific temperature.
even when the coolant temperature high
warning light blinks or illuminates in RED,
the cooling fan circuit may be defective.
Refer to “Coolant temperature low indica-
tor light/Coolant temperature high warning
light” F3-17.
Check the fuse and replace it if necessary.
Refer to “Fuses” F11-35 and “Fuse panel
located in the engine compartment” F12-
12.
If the fuse is not blown, have the cooling
system checked by your SUBARU dealer.
If frequent addition of coolant is necessary,
there may be a leak in the engine cooling
system. It is recommended that the cooling
system and connections be checked for
leaks, damage, or looseness.
& Engine coolant
S11AF02
! Checking the coolant level
S11AF0201
WARNING
Coolant temperature high warning light
(red)
If the radiator cooling fan does not operate
11-11
1)
2)
“FULL” level mark
“LOW” level mark
Check the coolant level at each fuel stop.
1. Check the coolant level on the outside
of the res
