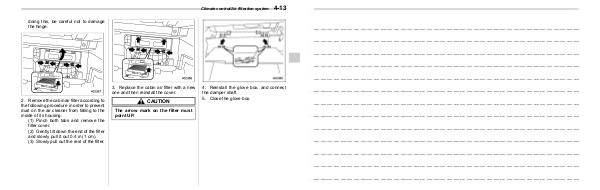

Climate control/Air filtration system
4-13
doing this, be careful not to damage
the hinge.
3. Replace the cabin air filter with a new
one and then reinstall the cover.
2. Remove the cabin air filter according to
the following procedure in order to prevent
dust on the air cleaner from falling to the
inside of its housing.
(1) Pinch both tabs and remove the
filter cover.
(2) Gently tilt down the end of the filter
and slowly pull it out 0.4 in (1 cm).
(3) Slowly pull out the rest of the filter.
CAUTION
The arrow mark on the filter must
point UP.
4. Reinstall the glove box, and connect
the damper shaft.
5. Close the glove box.
