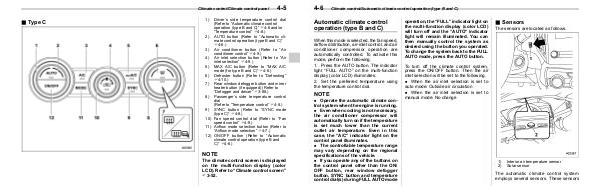

Climate control / Climate control panel 4-5
& Type C
S04AG03
1) Driver’ s side temperature control dial( Refer to“ Automatic climate control operation( type B and C)” ☞4-6 and / or“ Temperature control” ☞4-8.)
2) AUTO button( Refer to“ Automatic climate control operation( type B and C)” ☞4-6.)
3) Air conditioner button( Refer to“ Air conditioner control” ☞4-9.)
4) Air inlet selection button( Refer to“ Air inlet selection” ☞4-9.)
5) MAX A / C button( Refer to“ MAX A / C mode( for type B and C)” ☞4-8.)
6) Defroster button( Refer to“ Defrosting” ☞4-10.)
7) Rear window defogger button and mirror heater button( if equipped)( Refer to“ Defogger and deicer” ☞3-88.)
8) Passenger’ s side temperature control dial( Refer to“ Temperature control” ☞4-8.)
9) SYNC button( Refer to“ SYNC mode( type C)” ☞4-8.)
10) Fan speed control dial( Refer to“ Fan speed control” ☞4-9.)
11) Airflow mode selection button( Refer to“ Airflow mode selection” ☞4-7.)
12) ON / OFF button( Refer to“ Automatic climate control operation( type B and C)” ☞4-6.)
NOTE
The climate control screen is displayed on the multi-function display( color LCD). Refer to“ Climate control screen” ☞3-52.
