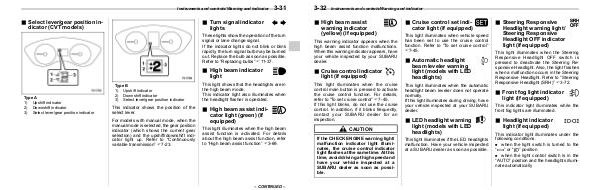

Instruments and controls/Warning and indicator
& Select lever/gear position in-
dicator (CVT models)
& Turn signal indicator
lights
S03AE43
3-31
S03AE20
These lights show the operation of the turn
signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be burned
out. Replace the bulb as soon as possible.
Refer to “Replacing bulbs” F11-37.
& High beam indicator
light
Type A
1) Upshift indicator
2) Downshift indicator
3) Select lever/gear position indicator
Type B
1) Upshift indicator
2) Downshift indicator
3) Select lever/gear position indicator
This indicator shows the position of the
select lever.
For models with manual mode, when the
manual mode is selected, the gear position
indicator (which shows the current gear
selection) and the upshift/downshift indi-
cator light up. Refer to “Continuously
variable transmission” F7-23.
S03AE21
This light shows that the headlights are in
the high beam mode.
This indicator light also illuminates when
the headlight flasher is operated.
& High beam assist indi-
cator light (green) (if
equipped)
S03AE83
This light illuminates when the high beam
assist function is activated. For details
about the high beam assist function, refer
to “High beam assist function” F3-69.
– CONTINUED –
