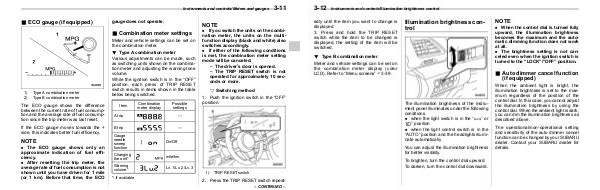

Instruments and controls/Meters and gauges
& ECO gauge (if equipped)
gauge does not operate.
NOTE
S03AD12
& Combination meter settings
S03AD16
Meter and vehicle settings can be set on
the combination meter.
1)
2)
Type A combination meter
Type B combination meter
The ECO gauge shows the difference
between the current rate of fuel consump-
tion and the average rate of fuel consump-
tion since the trip meter was last reset.
If the ECO gauge moves towards the +
side, this indicates better fuel efficiency.
NOTE
. The ECO gauge shows only an
approximate indication of fuel effi-
ciency.
. After resettin g the trip meter, the
average rate of fuel consumption is not
shown until you have driven for 1 mile
(or 1 km). Before that time, the ECO
! Type A combination meter
S03AD1601
Various adjustments can be made, such
as switching units shown on the combina-
tion meter and adjusting the warning tone
volume.
While the ignition switch is in the “OFF”
position, each press of TRIP RESET
switch results in items shown in the table
below being switched.
Item
Combination
meter display
Possible
settings
A trip —
B trip —
Gauge
needle
sweep
function On/Off
Changing
the unit* mile/km
Warning
volume* Lv. 1/Lv. 2/Lv. 3
*: if available
3-11
. If you switch the units on the combi-
nation meter, the units on the multi-
function display (black and white) also
switches accordingly.
. If either of the following conditions
is met, the combination meter setting
mode will be canceled.
– The driver’s door is opened.
– The TRIP RESET switch is not
operated for approximately 10 sec-
onds or more.
! Switching method
S03AD160101
1. Push the ignition switch in the “OFF”
position.
1)
TRIP RESET switch
2. Press the TRIP RESET switch repeat-
– CONTINUED –
