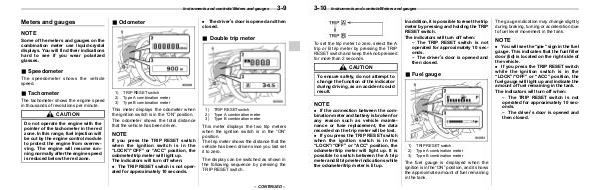

Instruments and controls/Meters and gauges
& Odometer
Meters and gauges
S03AD04
S03AD
3-9
. The driver’s door is opened and then
closed.
NOTE
& Double trip meter
Some of the meters and gauges on the
combination meter use liquid-crystal
displays. You will find their indications
hard to see if you wear polarized
glasses.
S03AD05
& Speedometer
S03AD03
The speedometer shows the vehicle
speed.
& Tachometer
S03AD06
The tachometer shows the engine speed
in thousands of revolutions per minute.
CAUTION
Do not operate the engine with the
pointer of the tachometer in the red
zone. In this range, fuel injection will
be cut by the engine control module
to protect the engine from overrev-
ving. The engine will resume run-
ning normally after the engine speed
is reduced below the red zone.
1)
2)
3)
TRIP RESET switch
Type A combination meter
Type B combination meter
This meter displays the odometer when
the ignition switch is in the “ON” position.
The odometer shows the total distance
that the vehicle has been driven.
NOTE
If you press the TRIP RESET switch
when the ignition switch is in the
“LOCK”/“OFF” or “ACC” position, the
odometer/trip meter will light up.
The indicators will turn off when:
. The TRIP RESET switch is not oper-
ated for approximately 10 seconds.
1)
2)
3)
TRIP RESET switch
Type A combination meter
Type B combination meter
This meter displays the two trip meters
when the ignition switch is in the “ON”
position.
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
The display can be switched as shown in
the following sequence by pressing the
TRIP RESET switch.
– CONTINUED –
