REAR VIEW CAMERA

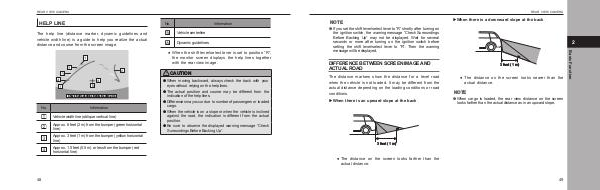

HELP LINE
No.
The help line (distance marker, dynamic guidelines and
vehicle width line) is a guide to help you realize the actual
distance and course from the screen image.
Information
Vehicle centerline
Dynamic guidelines
Ɣ When the shift lever/select lever is set to position “R”,
the monitor screen displays the help lines together
with the rear view image.
CAUTION
O When moving backward, always check the back with your
eyes without relying on the help lines.
Check Surroundings Before Backing Up
No.
Information
O Differences may occur due to number of passengers or loaded
cargo.
Vehicle width line (oblique vertical line) O When the vehicle is on a slope or when the vehicle is inclined
against the road, the indication is different from the actual
position.
Approx. 6 feet (2 m) from the bumper (green horizontal
line) O Be sure to observe the displayed warning message “Check
Surroundings Before Backing Up”.
Approx. 3 feet (1 m) from the bumper (yellow horizontal
line)
Approx. 1.5 feet (0.5 m) or less from the bumper (red
horizontal line)
48
O The actual position and course may be different from the
indication of the help lines.
