B

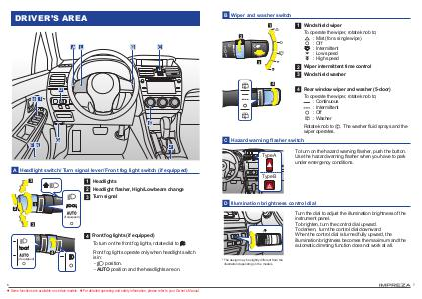

Wiper and washer switch
1 Windshield wiper
1
To operate the wiper, rotate knob to;
: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed
2
3
2 Wiper intermittent time control
3 Windshield washer
4
4 Rear window wiper and washer (5-door)
To operate the wiper, rotate knob to;
: Continuous
: Intermittent
: Off
: Washer
Rotate knob to
wiper operates.
. The washer fluid sprays and the
C
Hazard warning flasher switch
Type A
To turn on the hazard warning flasher, push the button.
Use the hazard warning flasher when you have to park
under emergency conditions.
Type B
D
Illumination brightness control dial
Turn the dial to adjust the illumination brightness of the
instrument panel.
To brighten, turn the control dial upward.
To darken, turn the control dial downward.
When the control dial is turned fully upward, the
illumination brightness becomes the maximum and the
automatic dimming function does not work at all.
*The design may be slightly different from the
illustration depending on the models.
7
