2-22
Keys and doors/PIN Code Access (models with “keyless access with push–button start system”)

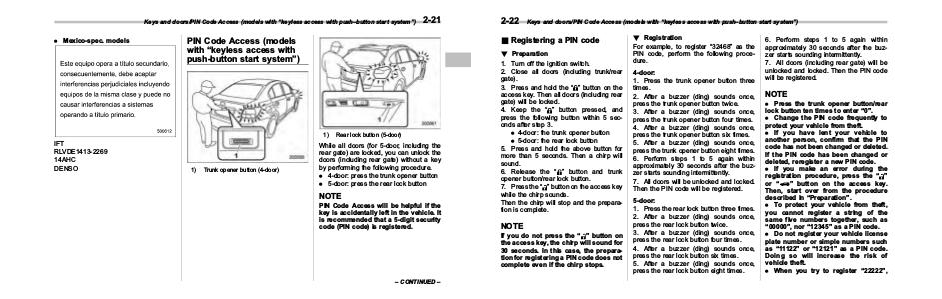

& Registering a PIN code
! Preparation
1. Turn off the ignition switch.
2. Close all doors (including trunk/rear
gate).
3. Press and hold the “ ” button on the
access key. Then all doors (including rear
gate) will be locked.
4. Keep the “ ” button pressed, and
press the following button within 5 seconds after step 3.
. 4-door: the trunk opener button
. 5-door: the rear lock button
5. Press and hold the above button for
more than 5 seconds. Then a chirp will
sound.
6. Release the “ ” button and trunk
opener button/rear lock button.
7. Press the “ ” button on the access key
while the chirp sounds.
Then the chirp will stop and the preparation is complete.
NOTE
If you do not press the “ ” button on
the access key, the chirp will sound for
30 seconds. In this case, the preparation for registering a PIN code does not
complete even if the chirp stops.
! Registration
For example, to register “32468” as the
PIN code, perform the following procedure.
4-door:
1. Press the trunk opener button three
times.
2. After a buzzer (ding) sounds once,
press the trunk opener button twice.
3. After a buzzer (ding) sounds once,
press the trunk opener button four times.
4. After a buzzer (ding) sounds once,
press the trunk opener button six times.
5. After a buzzer (ding) sounds once,
press the trunk opener button eight times.
6. Perform steps 1 to 5 again within
approximately 30 seconds after the buzzer starts sounding intermittently.
7. All doors
