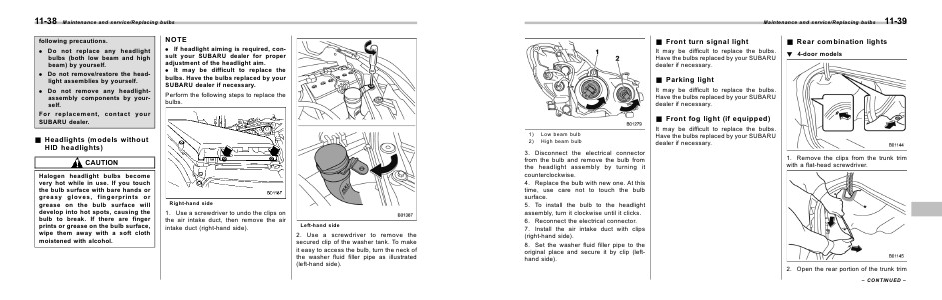

Maintenance and service/Replacing bulbs
11-39
& Front turn signal light
& Rear combination lights
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
! 4-door models
& Parking light
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
& Front fog light (if equipped)
1)
2)
Low beam bulb
High beam bulb
3. Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
4. Replace the bulb with new one. At this
time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
6. Reconnect the electrical connector.
7. Install the air intake duct with clips
(right-hand side).
8. Set the washer fluid filler pipe to the
original place and secure it by clip (lefthand side).
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
1. Remove the clips from the trunk trim
with a flat-head screwdriver.
2. Open the rear portion of the trunk trim
– CONTINUED –
