Seat, seatbelt and SRS airbags
8)

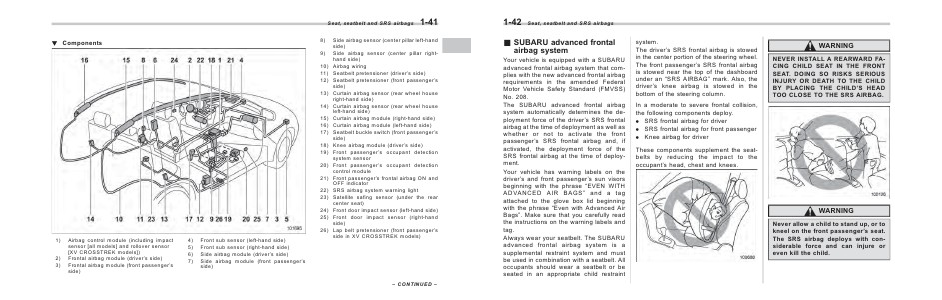

! Components

9)
10)
11)
12)
13)
14)
15)
16)
17)
18)
19)
20)
21)
22)
23)
24)
25)
26)
1)
2)
3)

Airbag control module (including impact
sensor [all models] and rollover sensor
[XV CROSSTREK models])
Frontal airbag module (driver’s side)
Frontal airbag module (front passenger’s
side)

4)
5)
6)
7)

Front sub sensor (left-hand side)
Front sub sensor (right-hand side)
Side airbag module (driver’s side)
Side airbag module (front passenger’s
side)

1-41

Side airbag sensor (center pillar left-hand
side)
Side airbag sensor (center pillar righthand side)
Airbag wiring
Seatbelt pretensioner (driver’s side)
Seatbelt pretensioner (front passenger’s
side)
Curtain airbag sensor (rear wheel house
right-hand side)
Curtain airbag sensor (rear wheel house
left-hand side)
Curtain airbag module (right-hand side)
Curtain airbag module (left-hand side)
Seatbelt buckle switch (front passenger’s
side)
Knee airbag module (driver’s side)
Front passenger’s occupant detection
system sensor
Front passenger’s occupant detection
control module
Front passenger’s frontal airbag ON and
OFF indicator
SRS airbag system warning light
Satellite safing sensor (under the rear
center seat)
Front door impact sensor (left-hand side)
Front door impact sensor (right-hand
side)
Lap belt pretensioner (front passenger’s
side in XV CROSSTREK models)

– CONTINUED –
