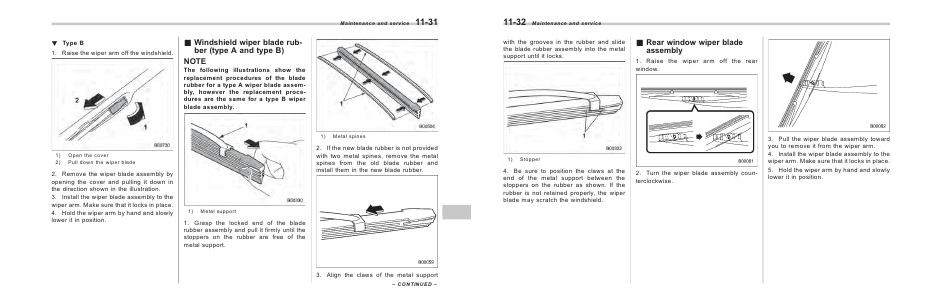

Maintenance and service
! Type B
1. Raise the wiper arm off the windshield.
11-31
& Windshield wiper blade rubber (type A and type B)
NOTE
The following illustrations show the
replacement procedures of the blade
rubber for a type A wiper blade assembly, however the replacement procedures are the same for a type B wiper
blade assembly.
1)
1)
2)
2. If the new blade rubber is not provided
with two metal spines, remove the metal
spines from the old blade rubber and
install them in the new blade rubber.
Open the cover
Pull down the wiper blade
2. Remove the wiper blade assembly by
opening the cover and pulling it down in
the direction shown in the illustration.
3. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
4. Hold the wiper arm by hand and slowly
lower it in position.
Metal spines
1)
Metal support
1. Grasp the locked end of the blade
rubber assembly and pull it firmly until the
stoppers on the rubber are free of the
metal support.
3. Align the claws of the metal support
– CONTINUED –
