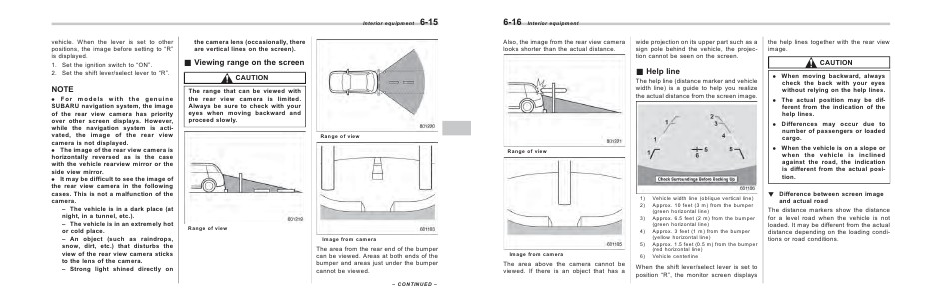

6-16
Interior equipment
Also, the image from the rear view camera
looks shorter than the actual distance.
wide projection on its upper part such as a
sign pole behind the vehicle, the projection cannot be seen on the screen.
& Help line
The help line (distance marker and vehicle
width line) is a guide to help you realize
the actual distance from the screen image.
Range of view
1)
2)
3)
4)
5)
Image from camera
The area above the camera cannot be
viewed. If there is an object that has a
6)
Vehicle width line (oblique vertical line)
Approx. 10 feet (3 m) from the bumper
(green horizontal line)
Approx. 6.5 feet (2 m) from the bumper
(green horizontal line)
Approx. 3 feet (1 m) from the bumper
(yellow horizontal line)
Approx. 1.5 feet (0.5 m) from the bumper
(red horizontal line)
Vehicle centerline
When the shift lever/select lever is set to
position “R”, the monitor screen displays
the help lines together with the rear view
image.
CAUTION
. When moving backward, always
check the back with your eyes
without relying on the help lines.
. The actual position may be different from the indication of the
help lines.
. Differences may occur due to
number of passengers or loaded
cargo.
. When the vehicle is on a slope or
when the vehicle is inclined
against the road, the indication
is different from the actual position.
! Difference between screen image
and actual road
The distance markers show the distance
for a level road when the vehicle is not
loaded. It may be different from the actual
distance depending on the loading conditions or road conditions.
