Seat, seatbelt and SRS airbags
1-31
installing a child restraint system only on
the rear seat window-side seating positions. For each window-side seating position, two lower anchorages are provided.
Each lower anchorage is located where
the seat cushion meets the seatback.
Some types of child restraint systems can
be installed on the rear seat of your
vehicle without use of the seatbelts. Such
child restraint systems are secured to the
designated anchorages provided on the
vehicle body. The lower and tether anchorages are sometimes referred to as the
LATCH system (Lower Anchors and
Tethers for CHildren).
Your vehicle is equipped with four lower
anchorages (bars) and two or three upper
anchorages (tether anchorages) for accommodating such child restraint systems.
*: If equipped

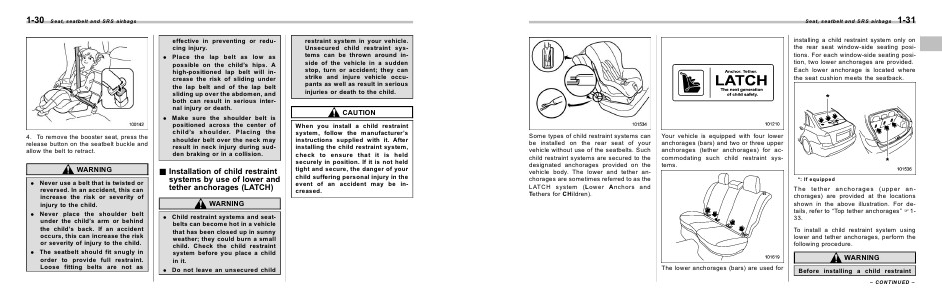

The tether anchorages (upper anchorages) are provided at the locations
shown in the above illustration. For details, refer to “Top tether anchorages” F133.
To install a child restraint system using
lower and tether anchorages, perform the
following procedure.
WARNING
The lower anchorages (bars) are used for
Before installing a child restraint
– CONTINUED –
