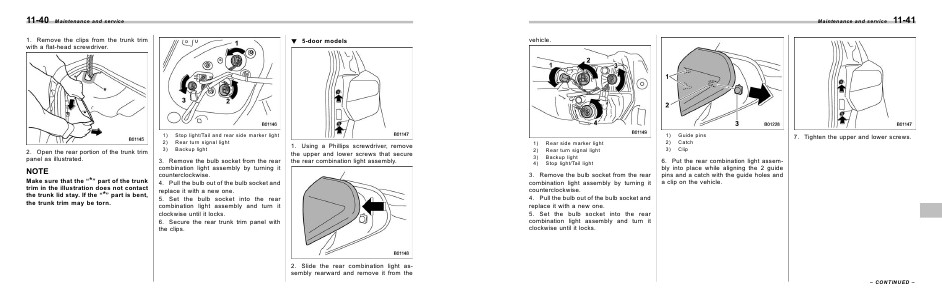

11-40
Maintenance and service
1. Remove the clips from the trunk trim
with a flat-head screwdriver.
2. Open the rear portion of the trunk trim
panel as illustrated.
NOTE
Make sure that the “*” part of the trunk
trim in the illustration does not contact
the trunk lid stay. If the “*” part is bent,
the trunk trim may be torn.
! 5-door models
1)
2)
3)
Stop light/Tail and rear side marker light
Rear turn signal light
Backup light
3. Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
4. Pull the bulb out of the bulb socket and
replace it with a new one.
5. Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
6. Secure the rear trunk trim panel with
the clips.
1. Using a Phillips screwdriver, remove
the upper and lower screws that secure
the rear combination light assembly.
2. Slide the rear combination light assembly rearward and remove it from the
