Audio

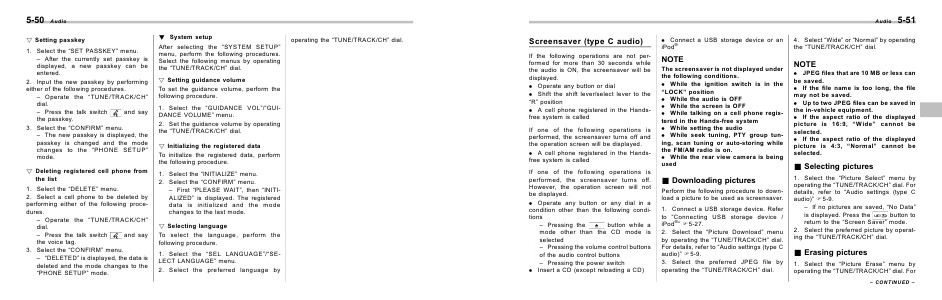

Screensaver (type C audio)
. Connect a USB storage device or an
iPod®
If the following operations are not performed for more than 30 seconds while
the audio is ON, the screensaver will be
displayed.
. Operate any button or dial
. Shift the shift lever/select lever to the
“R” position
. A cell phone registered in the Handsfree system is called
NOTE
If one of the following operations is
performed, the screensaver turns off and
the operation screen will be displayed.
. A cell phone registered in the Handsfree system is called
If one of the following operations is
performed, the screensaver turns off.
However, the operation screen will not
be displayed.
. Operate any button or any dial in a
condition other than the following conditions
– Pressing the
button while a
mode other than the CD mode is
selected
– Pressing the volume control buttons
of the audio control buttons
– Pressing the power switch
. Insert a CD (except reloading a CD)
The screensaver is not displayed under
the following conditions.
. While the ignition switch is in the
“LOCK” position
. While the audio is OFF
. While the screen is OFF
. While talking on a cell phone registered in the Hands-free system
. While setting the audio
. While seek tuning, PTY group tuning, scan tuning or auto-storing while
the FM/AM radio is on.
. While the rear view camera is being
used
& Downloading pictures
Perform the following procedure to download a picture to be used as screensaver.
1. Connect a USB storage device. Refer
to “Connecting USB storage device /
iPod®” F5-27.
2. Select the “Picture Download” menu
by operating the “TUNE/TRACK/CH” dial.
For details, refer to “Audio settings (type C
audio)” F5-9.
3. Select the preferred JPEG file by
operating the “TUNE/TRACK/CH” dial.
5-51
4. Select “Wide” or “Normal” by operating
the “TUNE/TRACK/CH” dial.
NOTE
. JPEG files that are 10 MB or less can
be saved.
. If the file name is too long, the file
may not be saved.
. Up to two JPEG files can be saved in
the in-vehicle equipment.
. If the aspect ratio of the displayed
picture is 16:9, “Wide” cannot be
selected.
. If the aspect ratio of the displayed
picture is 4:3, “Normal” cannot be
selected.
& Selecting pictures
1. Select the “Picture Select” menu by
operating the “TUNE/TRACK/CH” dial. For
details, refer to “Audio settings (type C
audio)” F5-9.
– If no pictures are saved, “No Data”
is displayed. Press the
button to
return to the “Screen Saver” mode.
2. Select the preferred picture by operating the “TUNE/TRACK/CH” dial.
& Erasing pictures
1. Select the “Picture Erase” menu by
operating the “TUNE/TRACK/CH” dial. For
– CONTINUED –
