4-6

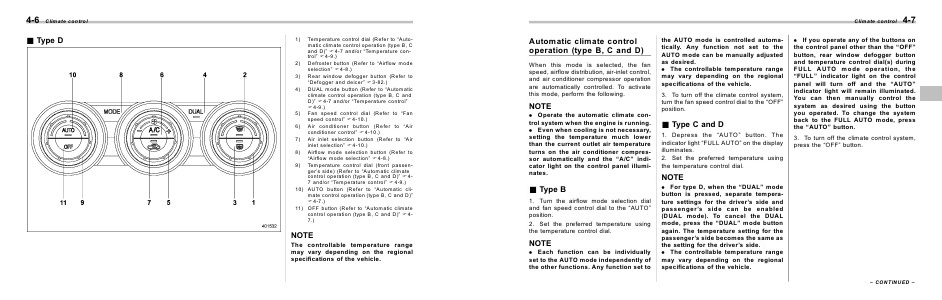

Climate control
& Type D
1)
Temperature control dial (Refer to “Automatic climate control operation (type B, C
and D)” F4-7 and/or “Temperature control” F4-9.)
2) Defroster button (Refer to “Airflow mode
selection” F4-8. )
3) Rear window defogger button (Refer to
“Defogger and deicer” F3-82.)
4) DUAL mode button (Refer to “Automatic
climate control operation (type B, C and
D)” F4-7 and/or “Temperature control”
F4-9.)
5) Fan speed control dial (Refer to “Fan
speed control” F4-10.)
6) Air conditioner button (Refer to “Air
conditioner control” F4-10.)
7) Air inlet selection button (Refer to “Air
inlet selection” F4-10.)
8) Airflow mode selection button (Refer to
“Airflow mode selection” F4-8.)
9) Temperature control dial (front passenger’s side) (Refer to “Automatic climate
control operation (type B, C and D)” F47 and/or “Temperature control” F4-9.)
10) AUTO button (Refer to “Automatic climate control operation (type B, C and D)”
F4-7.)
11) OFF button (Refer to “Automatic climate
control operation (type B, C and D)” F47.)
NOTE
The controllable temperature range
may vary depending on the regional
specifications of the vehicle.
