3-32
Instruments and controls

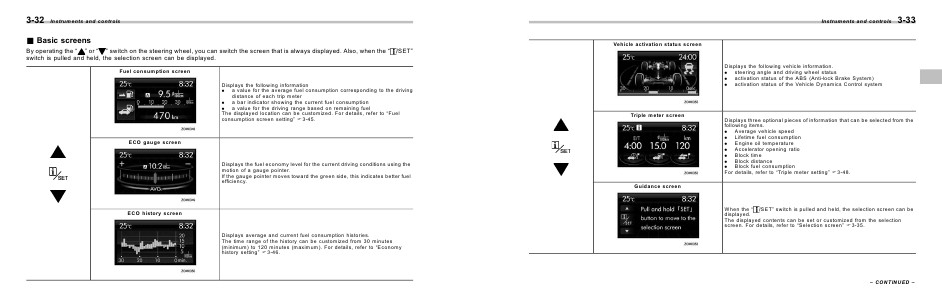

& Basic screens
By operating the “ ” or “ ” switch on the steering wheel, you can switch the screen that is always displayed. Also, when the “ /SET”
switch is pulled and held, the selection screen can be displayed.
Fuel consumption screen
Displays the following information
. a value for the average fuel consumption corresponding to the driving
distance of each trip meter
. a bar indicator showing the current fuel consumption
. a value for the driving range based on remaining fuel
The displayed location can be customized. For details, refer to “Fuel
consumption screen setting” F3-45.
ECO gauge screen
Displays the fuel economy level for the current driving conditions using the
motion of a gauge pointer.
If the gauge pointer moves toward the green side, this indicates better fuel
efficiency.
ECO history screen
Displays average and current fuel consumption histories.
The time range of the history can be customized from 30 minutes
(minimum) to 120 minutes (maximum). For details, refer to “Economy
history setting” F3-46.
