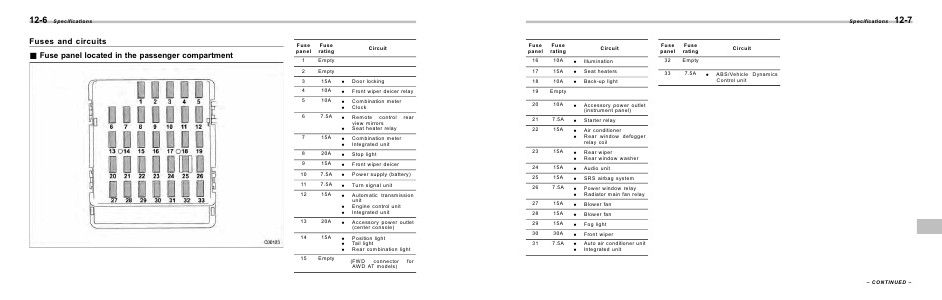

12-6

Specifications

Fuses and circuits
& Fuse panel located in the passenger compartment

Fuse
panel

Fuse
rating

1

Empty

2

Empty

3

15A

.

Door locking

4

10A

.

Front wiper deicer relay

5

10A

.
.

Combination meter
Clock

6

7.5A

.
.

Remote control
view mirrors
Seat heater relay

7

15A

.
.

Combination meter
Integrated unit
Stop light

Circuit

rear

8

20A

.

9

15A

.

Front wiper deicer

10

7.5A

.

Power supply (battery)

11

7.5A

.

Turn signal unit

12

15A

.

Automatic transmission
unit
Engine control unit
Integrated unit

.
.
13

20A

.

Accessory power outlet
(center console)

14

15A

.
.
.

Position light
Tail light
Rear combination light

15

Empty

(FWD connector
AWD AT models)

for
