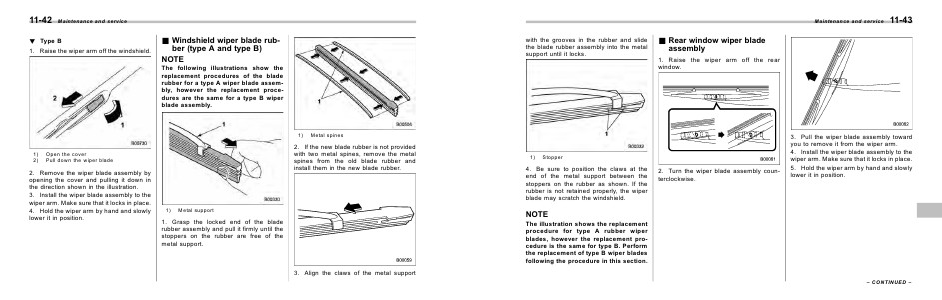

Maintenance and service
with the grooves in the rubber and slide
the blade rubber assembly into the metal
support until it locks.
1)
& Rear window wiper blade
assembly
1. Raise the wiper arm off the rear
window.
Stopper
4. Be sure to position the claws at the
end of the metal support between the
stoppers on the rubber as shown. If the
rubber is not retained properly, the wiper
blade may scratch the windshield.
11-43
2. Turn the wiper blade assembly counterclockwise.
3. Pull the wiper blade assembly toward
you to remove it from the wiper arm.
4. Install the wiper blade assembly to the
wiper arm. Make sure that it locks in place.
5. Hold the wiper arm by hand and slowly
lower it in position.
NOTE
The illustration shows the replacement
procedure for type A rubber wiper
blades, however the replacement procedure is the same for type B. Perform
the replacement of type B wiper blades
following the procedure in this section.
– CONTINUED –
