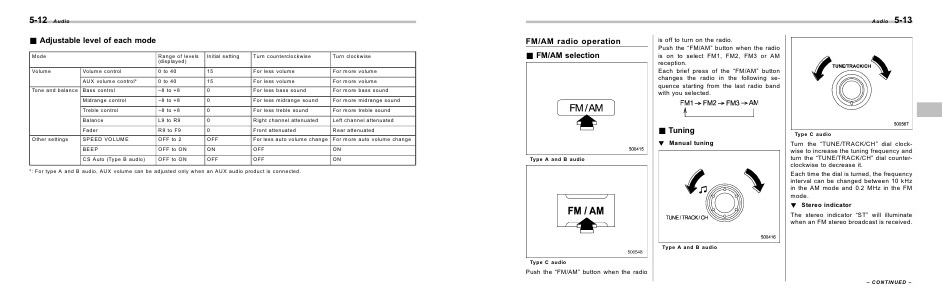

Audio
FM/AM radio operation
& FM/AM selection
5-13
is off to turn on the radio.
Push the “FM/AM” button when the radio
is on to select FM1, FM2, FM3 or AM
reception.
Each brief press of the “FM/AM” button
changes the radio in the following sequence starting from the last radio band
with you selected.
& Tuning
! Manual tuning
Type A and B audio
Type C audio
Turn the “TUNE/TRACK/CH” dial clockwise to increase the tuning frequency and
turn the “TUNE/TRACK/CH” dial counterclockwise to decrease it.
Each time the dial is turned, the frequency
interval can be changed between 10 kHz
in the AM mode and 0.2 MHz in the FM
mode.
! Stereo indicator
The stereo indicator “ST” will illuminate
when an FM stereo broadcast is received.
Type A and B audio
Type C audio
Push the “FM/AM” button when the radio
– CONTINUED –
