3-28
Instruments and controls

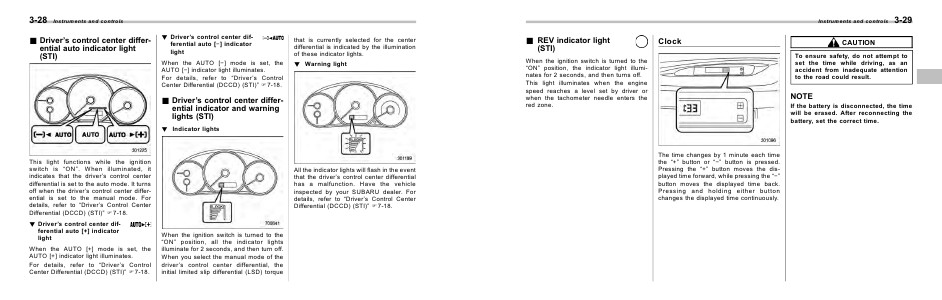

& Driver’s control center differential auto indicator light
(STI)
! Driver’s control center differential auto [−] indicator
light
When the AUTO [−] mode is set, the
AUTO [−] indicator light illuminates.
For details, refer to “Driver’s Control
Center Differential (DCCD) (STI)” F7-18.
that is currently selected for the center
differential is indicated by the illumination
of these indicator lights.
! Warning light
& Driver’s control center differential indicator and warning
lights (STI)
! Indicator lights
This light functions while the ignition
switch is “ON”. When illuminated, it
indicates that the driver’s control center
differential is set to the auto mode. It turns
off when the driver’s control center differential is set to the manual mode. For
details, refer to “Driver’s Control Center
Differential (DCCD) (STI)” F7-18.
! Driver’s control center differential auto [+] indicator
light
When the AUTO [+] mode is set, the
AUTO [+] indicator light illuminates.
For details, refer to “Driver’s Control
Center Differential (DCCD) (STI)” F7-18.
All the indicator lights will flash in the event
that the driver’s control center differential
has a malfunction. Have the vehicle
inspected by your SUBARU dealer. For
details, refer to “Driver’s Control Center
Differential (DCCD) (STI)” F7-18.
When the ignition switch is turned to the
“ON” position, all the indicator lights
illuminate for 2 seconds, and then turn off.
When you select the manual mode of the
driver’s control center differential, the
initial limited slip differential (LSD) torque
