1-4
Seat, seatbelt and SRS airbags

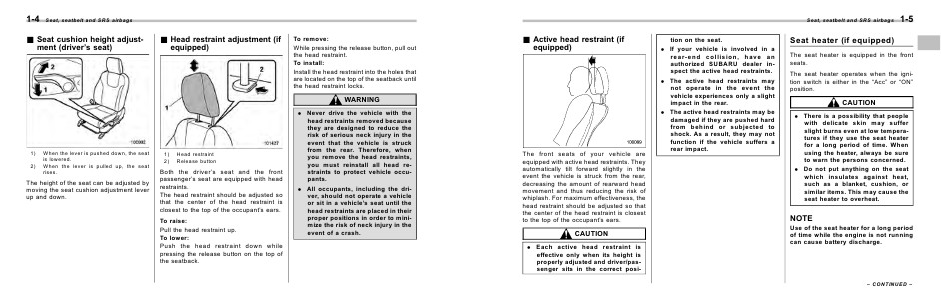

& Seat cushion height adjustment (driver’s seat)
& Head restraint adjustment (if
equipped)
To remove:
While pressing the release button, pull out
the head restraint.
To install:
Install the head restraint into the holes that
are located on the top of the seatback until
the head restraint locks.
WARNING
1)
2)
When the lever is pushed down, the seat
is lowered.
When the lever is pulled up, the seat
rises.
The height of the seat can be adjusted by
moving the seat cushion adjustment lever
up and down.
1)
2)
Head restraint
Release button
Both the driver’s seat and the front
passenger’s seat are equipped with head
restraints.
The head restraint should be adjusted so
that the center of the head restraint is
closest to the top of the occupant’s ears.
To raise:
Pull the head restraint up.
To lower:
Push the head restraint down while
pressing the release button on the top of
the seatback.
. Never drive the vehicle with the
head restraints removed because
they are designed to reduce the
risk of serious neck injury in the
event that the vehicle is struck
from the rear. Therefore, when
you remove the head restraints,
you must reinstall all head restraints to protect vehicle occupants.
. All occupants, including the driver, should not operate a vehicle
or sit in a vehicle’s seat until the
head restraints are placed in their
proper positions in order to minimize the risk of neck injury in the
event of a crash.
