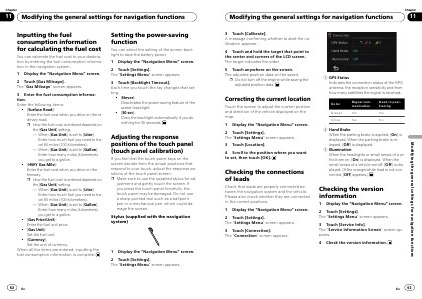

Subaru Forester Manuals Pioneer® Audio/Navigation System Manual (U310BT) | Page 63

Chapter Modifying the general settings for navigation functions 11 3 Touch [Calibrate]. A message confirming whether to start the calibration appears. 4 Touch and hold the target that point to the center and corners of the LCD screen. The target indicates the order. 5 Touch anywhere on the screen. The adjusted position data will be saved. 1 GPS Status Indicates the connection status of the GPS antenna, the reception sensitivity and from how many satellites the signal is received. p Do not turn off the engine while saving the adjusted position data. Correcting the current location Color 1 Used in positioning Yes Yes No Display the “Navigation Menu” screen. Touch [Location]. Checking the connections of leads Check that leads are properly connected between the navigation system and the vehicle. Please also check whether they are connected in the correct positions. Display the “Navigation Menu” screen. 2 Touch [Settings]. The “Settings Menu” screen appears. 3 Touch [Connection]. The “Connection” screen appears. Checking the version information 1 Display the “Navigation Menu” screen. 2 Touch [Settings]. The “Settings Menu” screen appears. 3 Touch [Service Info]. The “Service Information Screen” screen appears. 4 Check the version information. En Modifying the general settings for navigation functions 2 Hand Brake When the parking brake is applied, [On] is displayed. When the parking brake is released, [Off] is displayed. 3 Illumination When the headlights or small lamps of a vehicle are on, [On] is displayed. When the small lamps of a vehicle are off, [Off] is displayed. (If the orange/white lead is not connected, [O
