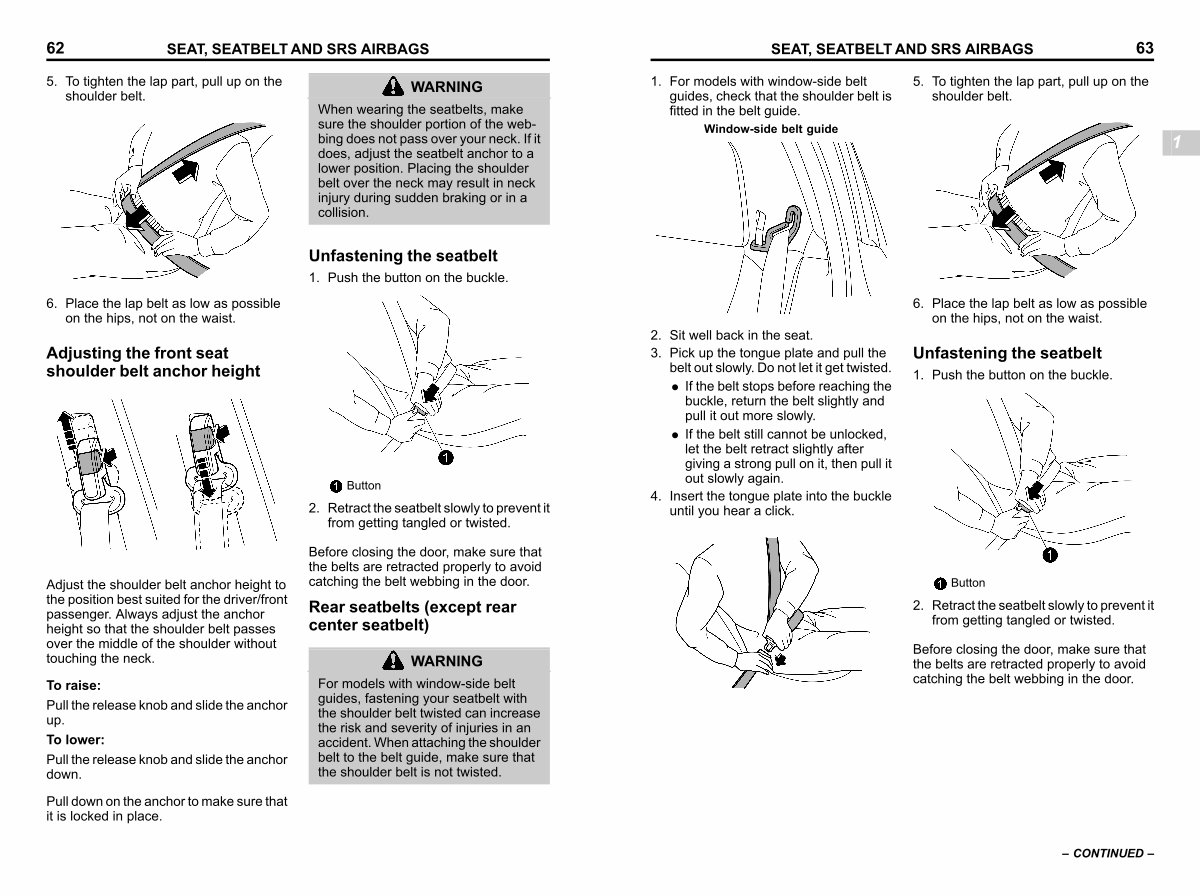

SEAT, SEATBELT AND SRS AIRBAGS 63
1. For models with window-side belt guides, check that the shoulder belt is fitted in the belt guide.
Window-side belt guide
5. To tighten the lap part, pull up on the shoulder belt.
1
S _ 103374-W
2. Sit well back in the seat.
3. Pick up the tongue plate and pull the belt out slowly. Do not let it get twisted.
. If the belt stops before reaching the buckle, return the belt slightly and pull it out more slowly.
. If the belt still cannot be unlocked, let the belt retract slightly after giving a strong pull on it, then pull it out slowly again.
4. Insert the tongue plate into the buckle until you hear a click.
S _ 103058-MW
6. Place the lap belt as low as possible on the hips, not on the waist.
Unfastening the seatbelt
1. Push the button on the buckle. s01ae0613
S _ 103057-MW
Button
S _ 103219-MW
2. Retract the seatbelt slowly to prevent it from getting tangled or twisted.
Before closing the door, make sure that the belts are retracted properly to avoid catching the belt webbing in the door.
– CONTINUED –
